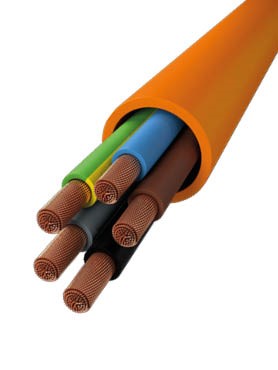

X-PUR ® H07BQ-F - 450/750 V
Application
The X-PUR cable is a flexible and extremely durable cable capable of withstanding strong twists and resisting mechanical stress. The cable can be submerged in freshwater or saltwater at depths of up to 300 meters, and is resistant to frost, UV light, impact, and wear. It is designed to endure extreme conditions in various indoor and outdoor environments, making it suitable for numerous applications on land and in water. This includes installations in marine/water environments, aquaculture, mechanical industry, crushing plants, and agriculture.
Construction
Electrolytic annealed Cu, class 5 according to IEC 60228
Thermosetting rubber, type EI6 according to HD 22
According to HD 308 / HD 186
Polyurethan (PUR) compound, type TMPU according to HD 22, meter marked, orange
Technical data
-40° C to +90° C
450/750 V
3 x cable diameter
Short circuit temp.: max 250° C / 5 sec.
Approvals
IEC 60332-1, en 50525-2-21, IEC 60228, HD 22.10 / UNE 21027-10, HAR, AENOR, CE, RoHS
| SKU | EAN | Dimension (mm2) | Current Value (A) | Packaging | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| 6031095001 | 5704403208999 | 1x95 | 328 | D./Cut | 19,6 | 955 | |
| 6031185001 | 5704403209002 | 1x185 | 510 | D./Cut | 26,3 | 1800 | |
| 6031001502 | 5704403209019 | 2x1,5 | 26 | D./Cut | 7,7 | 75 | |
| 6031001503 | 5704403209026 | 3G1,5 | 26 | D./Cut | 8,2 | 95 | |
| 6031002503 | 5704403209033 | 3G2,5 | 36 | D./Cut | 9,5 | 145 | |
| 6031004003 | 5704403209040 | 3G4 | 49 | D./Cut | 13,2 | 245 | |
| 6031001504 | 5704403209057 | 4G1,5 | 23 | D./Cut | 9,1 | 125 | |
| 6031002504 | 5704403209064 | 4G2,5 | 32 | D./Cut | 10,7 | 180 | |
| 6031004004 | 5704403209071 | 4G4 | 42 | D./Cut | 13,2 | 245 | |
| 6031001505 | 5704403209088 | 5G1,5 | 23 | D./Cut | 10,1 | 150 | |
| 6031002505 | 5704403209095 | 5G2,5 | 32 | D./Cut | 12,4 | 210 | |
| 6031004005 | 5704403209101 | 5G4 | 42 | D./Cut | 14,6 | 335 | |
| 6031006005 | 5704403209118 | 5G6 | 54 | D./Cut | 16,2 | 455 | |
| 6031010005 | 5704403209125 | 5G10 | 75 | D./Cut | 21,0 | 770 | |
| 6031016005 | 5704403209132 | 5G16 | 100 | D./Cut | 24,0 | 1105 | |
| 6031025005 | 5704403209149 | 5G25 | 127 | D./Cut | 29,9 | 1705 | |
| 6031035005 | 5704403209156 | 5G35 | 158 | D./Cut | 33,4 | 2260 | |
| 6031050005 | 5704403208975 | 5G50 | 192 | D./Cut | 38,8 | 3125 | |
| 6031001506 | 5704403208982 | 6G1,5 | 23 | D./Cut | 12,9 | 195 | |
| * The values can have small deviations | |||||||
