X-VOLT FR-N20XA8E-AR, 1 conductor - 12/20 kV

Application

X-VOLT FR-N20XA8E-AR is used for medium voltage installations or distribution networks both indoors and outdoors.
Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data centers along with others.

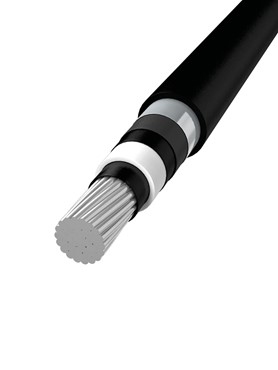

Construction

Conductor

Aluminium, cl. 2

Insulation

Cross-linked polyethylene insulation, type PR, natural color. Cross-linked in catenary line with nitrogen atmosphere.

Inner sheath

Insulation screen: Semi-conducting XLPE
Inner covering: Semi-conducting water-swellable tape
Radial water barrier: Aluminum/plastic laminate tightly attached to outer sheath

Screen

Strippable cross-linked semiconductor screen applied over insulation in a triple-extrusion process.
Aluminium foil.

Outer sheath

Polyolefin, black

Technical data

Working temperature

-15 °C to +90 °C

Rated voltage

12/20 kV

Test voltage

42 kV

Bend radius

15 x cable diameter

Approvals

IEC 60754, NF C 33-226, EN 60228,
Bending radius 15 x cable diameter
Can lay in tubes
For use in cable trays
Halogen free
Max. short circuit temp. +250° C
Max. working temp. +90° C
Min. working temperature -15° C
Outdoor use
SKU EAN Dimension (mm2) Current Value (A) Packaging Diameter (mm)* Weight (kg/km)*
10301050.FR# 5704403190195 1x50 201 Drum - 705
10301095.FR# 5704403190201 1x95 295 Drum 29,1 870
10301150.FR# 5704403190218 1x150 377 Drum 30,7 1035
10301240.FR# 5704403190225 1x240 497 Drum 35,0 1425
10301400.FR# 5704403190232 1x400 639 Drum 40,9 1985
10301500.FR# 5704403190249 1x500 - Drum - -
10301630.FR# 5704403190256 1x630 846 Drum 48,1 2830
* The values can have small deviations
