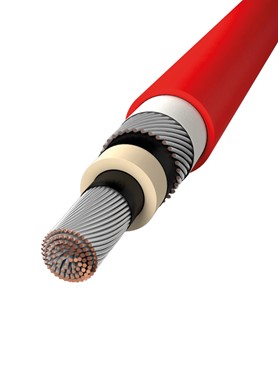

SCANFLEX ® NTMCGCWOEU - 18/30 kV

Application

The flexible single core SCANFLEX® NTMCGCWOEU power supply cable is usable for short connections of mobile transformer substations to overhead lines, also for use in railway vehicles, switching stations and control panels.

Construction

Conductor

Finely stranded tinned, electrolytic copper, cl. 5

Insulation

Ethylene propylene rubber (EPR)

Screen

Spinning of tinned copper wires with cross section 16 or 25 mm²

Outer sheath

5GM3 compound, red

Technical data

Working temperature

Fixed: -40° C to +90° C
Flexible: -25° C to +60° C

Rated voltage

12/20 kV

Test voltage

43 kV

Bend radius

Fixed: 6 x cable diameter
Flexible: 10 x cable diameter

Approvals

EN 60811-404, DIN VDE 0298, DIN VDE 0250, EN 60228, DIN VDE 0207, DIN VDE 0207, EN 50343, IEC 60811-2-1, IEC 60332-1-2, RoHs
Bending radius 10 x cable diameter
Can lay in tubes
Flame retardant acc. to IEC 60332-1
Flexible
For industrial use
Max. short circuit temp. +250° C
Max. working temp. +90° C
Medium voltage cable
Min. working temperature -40° C
Oil resistant
Outdoor decommissioning
UV-resistant
Withstands moisture
SKU EAN Dimension (mm2) Current Value (A) Packaging Diameter (mm)* Weight (kg/km)*
505702501 5704403185528 1x25/16 189 D./Cut 35,3 1600
505703501 5704403185306 1x35/16 234 D./Cut 37,3 1830
505705001 5704403185535 1x50/16 294 D./Cut 38,9 2030
505707001 5704403185542 1x70/16 360 D./Cut 41,0 2325
505709501 5704403185559 1x95/16 434 D./Cut 42,4 2600
505712001 5704403185566 1x120/16 505 D./Cut 43,9 2900
505715001 5704403185573 1x150/25 582 D./Cut 46,8 3385
505718501 5704403185580 1x185/25 664 D./Cut 50,0 3940
505724001 5704403185597 1x240/25 782 D./Cut 51,8 4485
* The values can have small deviations
