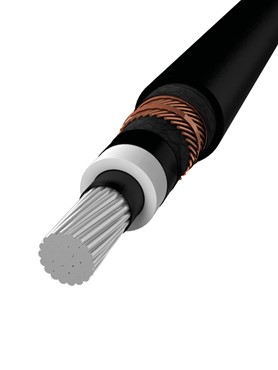

NA2XS(F)2Y is used for installation in ground, in water, outdoors, indoors and in cable ducts for power stations, industry, and distribution networks. The high mechanical durability of the PE-sheath permits strong mechanical stress during installation or during operation. The water blocking tape avoids water propagation inside the cable.
Alu-threads, class 2
Extruded semi-conducting layer around the conductor
XLPE DIX8
Extruded semi-conducting layer around the insulation
Semi-conducting water blocking tape
Cu threads and Cu counter helix over tape material
Water blocking tape
Polyethylene DMP2, black
Laminated sheath
Polymer laminated aluminum tape 0.25 mm
PE-sheath
Cross and longitudinal watertightness
-20° C to +90° C
18/30 kV (36 kV)
63 kV
15 x cable diameter
SKU | EAN | Dimension (mm2) | Current Value (A) | Packaging | Diameter (mm)* | Weight (kg/km)* | |
---|---|---|---|---|---|---|---|
871011534 | - | 1X50/16 | 187 | Drum | 34 | 1350 | |
871011478 | - | 1X70/16 | 232 | Drum | 36 | 1450 | |
871011535 | - | 1X95/16 | 282 | Drum | 37 | 1600 | |
871013275 | - | 1X95/35 | 282 | Drum | 37,5 | 1420 | |
871011536 | - | 1X120/16 | 323 | Drum | 34 | 1450 | |
871013276 | - | 1X120/35 | 325 | Drum | 39 | 1560 | |
871011537 | - | 1X150/25 | 367 | Drum | 40 | 1950 | |
871013279 | - | 1X150/35 | 367 | Drum | 40,5 | 1670 | |
871011538 | - | 1X185/25 | 421 | Drum | 42 | 2150 | |
871013277 | - | 1X185/35 | 421 | Drum | 42 | 1825 | |
871011539 | - | 1X240/25 | 496 | Drum | 44 | 2400 | |
871011540 | - | 1X300/25 | 568 | Drum | 47 | 2700 | |
871013280 | - | 1X300/35 | 568 | Drum | 46 | 2285 | |
871011541 | - | 1X400/35 | 659 | Drum | 50 | 3200 | |
871011542 | - | 1X500/35 | 764 | Drum | 53 | 3650 | |
871013278 | - | 1X500/50 | 764 | Drum | 54,5 | 3310 | |
871012223 | - | 1X630/35 | 890 | Drum | 60 | 3738 | |
871013067 | - | 1X800/35 | 1015 | Drum | 65 | 4367 | |
871013568 | - | 1X1000/35 | - | Drum | 66 | 4800 | |
* The values can have small deviations |
