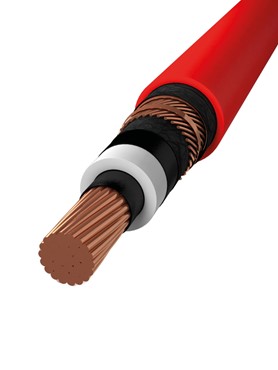

N2XSY 1-conductor, CU - 18/30 (36) kV

Application

N2XSY is used for installations indoor as well as outdoor, above or directly in the ground, in tubes or water.

Construction

Conductor

Round Cu threads, class 2
Semi conducting layer around the conductor

Insulation

XLPE insulated
Semi conducting layer around the insulation

Filling sheath

Tape of conductive material

Screen

Cu threads over tape material

Outer sheath

PVC, red

Technical data

Working temperature

-5° C to +90° C

Rated voltage

18/30 kV (36 kV)

Test voltage

63 kV

Bend radius

15 x cable diameter

Approvals

IEC 60502, IEC 60332-1-2, CE, RoHS
Bending radius 15 x cable diameter
Can be buried
Flame retardant acc. to IEC 60332-1
For use in wind turbines
Max. working temp. +90° C
Medium voltage cable
Min. working temperature -5° C
SKU EAN Dimension (mm2) Current Value (A) Packaging Diameter (mm)* Weight (kg/km)*
871013657 - 1X35/16 202 Drum 33 1350
871011342 5704403118090 1X50/16 241 Drum 34 1550
871011343 - 1X70/16 299 Drum 36 1750
871011344 - 1X95/16 363 Drum 37 2050
871011345 - 1X120/16 418 Drum 39 2350
871011346 - 1X150/25 472 Drum 40 2700
871011347 - 1X185/25 539 Drum 42 3100
871011348 - 1X240/25 635 Drum 44 3700
871011349 - 1X300/25 725 Drum 47 4350
871011350 - 1X400/35 831 Drum 50 5350
871011351 - 1X500/35 953 Drum 53 6450
871014272 - 1X800/35 - Drum 62 9500
* The values can have small deviations
