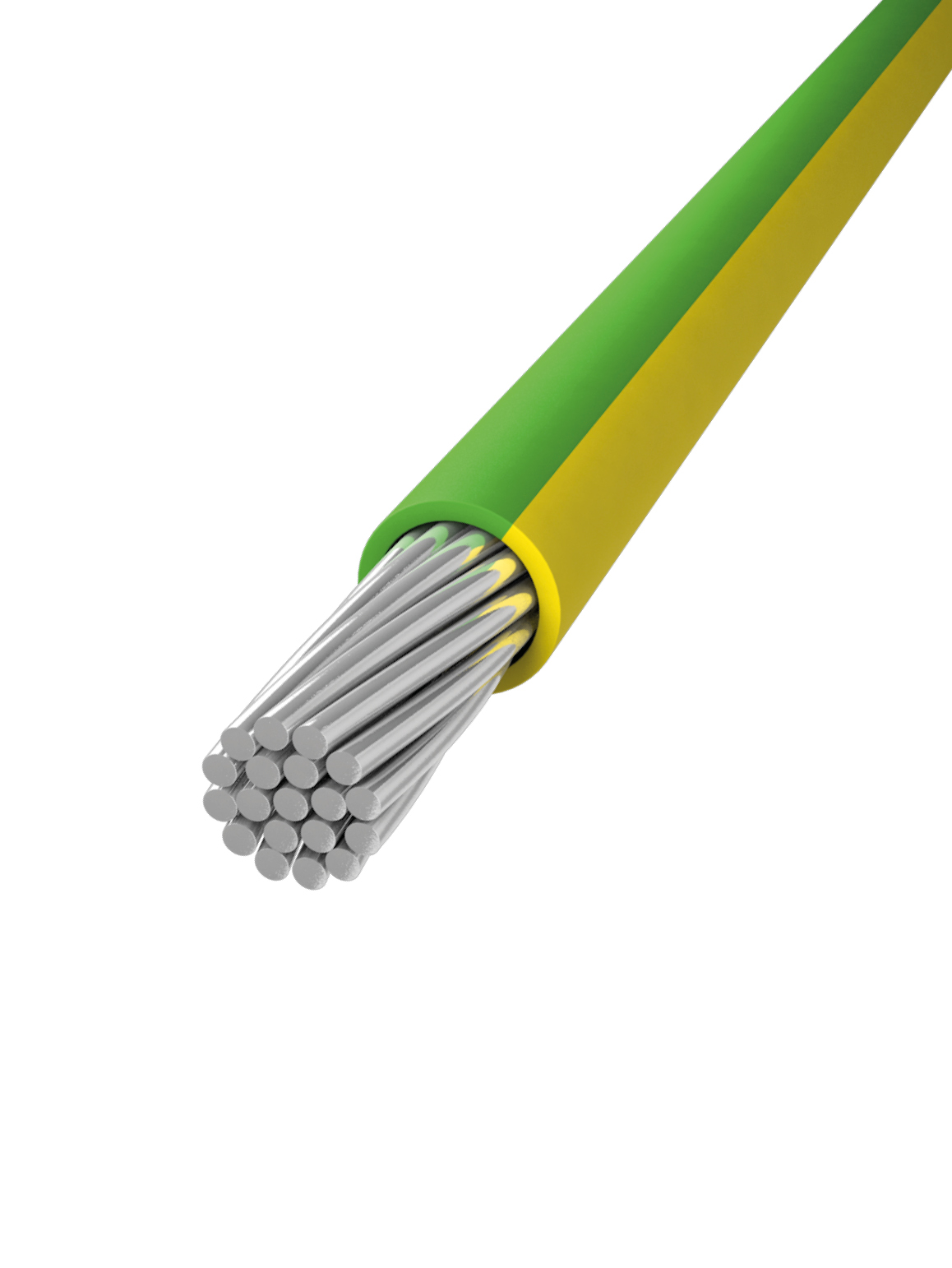

UX P15 - 0.6/1 kV

Application

UX P15 is a flame retardant, low smoke and halogen free cable, used for earthing. The cable is mud resistant in accordance with NEK 606.

Construction

Conductor

Tinned annealed stranded Cu, class 2

Insulation

Halogen free thermosetting compound type SHF2

Conductor color

When used as protective earth (PE) wire, the cables are coloured yellow/green. When used as single wire, the cables are coloured off-white, black, red or blue.

Outer sheath

Halogen free, flame retardant

Technical data

Working temperature

-20° C to +90° C

Rated voltage

0.6/1 kV

Bend radius
During installation: 8 x cable diameter
Fixed installation: 6 x cable diameter

Approvals

IEC 60754-1/2, IEC 61034-1/2, IEC 60332-3-22 cat. A, IEC 60092-353, IEC 60092-359, IEC 60332-1, NEK 606:2004, RoHS, CE
Bending radius 8 x cable diameter
Electromagnetically protected
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
For permanent outdoor installation
For use in cable trays
For use on oil rigs
For use on ships
Halogen free
Impact resistance: medium
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Max. working temp. +90° C
Min. working temperature -20° C
Mudresistance NEK TS 606
Outdoor use
Resistance towards oil and chemicals
UV-resistant
Water resistant
SKU EAN Dimension (mm2) Current Value (A) Packaging Diameter (mm)* Weight (kg/km)*
68401006 5704403052004 1x6 - D./Cut 6,7 101
68401010 5704403068463 1x10 - D./Cut 6,6 125
68401016U 5704403060573 1x16 - D./Cut 7,7 185
68401016G 5704403063604 1G16 - Tr./Afklip 8,8 185
68401025U 5704403060580 1x25 - D./Cut 9,5 290
68401035 5704403050680 1x35 - D./Cut 10,4 380
68401050 5704403066636 1x50 - D./Cut 12,1 510
68401070 - 1x70 - D./Cut 13,6 700
68401095 5704403079247 1x95 - D./Cut 15,5 950
68401095G 5704403085118 1G95 - Tr./Afklip 18,1 950
68401120 - 1x120 - D./Cut 17,5 1205
68401150 - 1x150 - D./Cut 19,4 1470
68401185 - 1x185 - D./Cut 21,7 1875
68401240 - 1x240 - D./Cut 24,7 2420
68401300 - 1x300 - D./Cut 27,2 3060
* The values can have small deviations
