TOXFREE ® RZ1CZ1-K - 0.6/1 kV
Application
TOXFREE® RZ1CZ1-K is a highly flexible and halogen free cable that can be used for energy supply in the industry and in distribution boards, power plants, etc. Suitable for indoor/outdoor use, in pipes and buried directly in soil. Versatile and popular alternative where there is a need for a cable with screen.

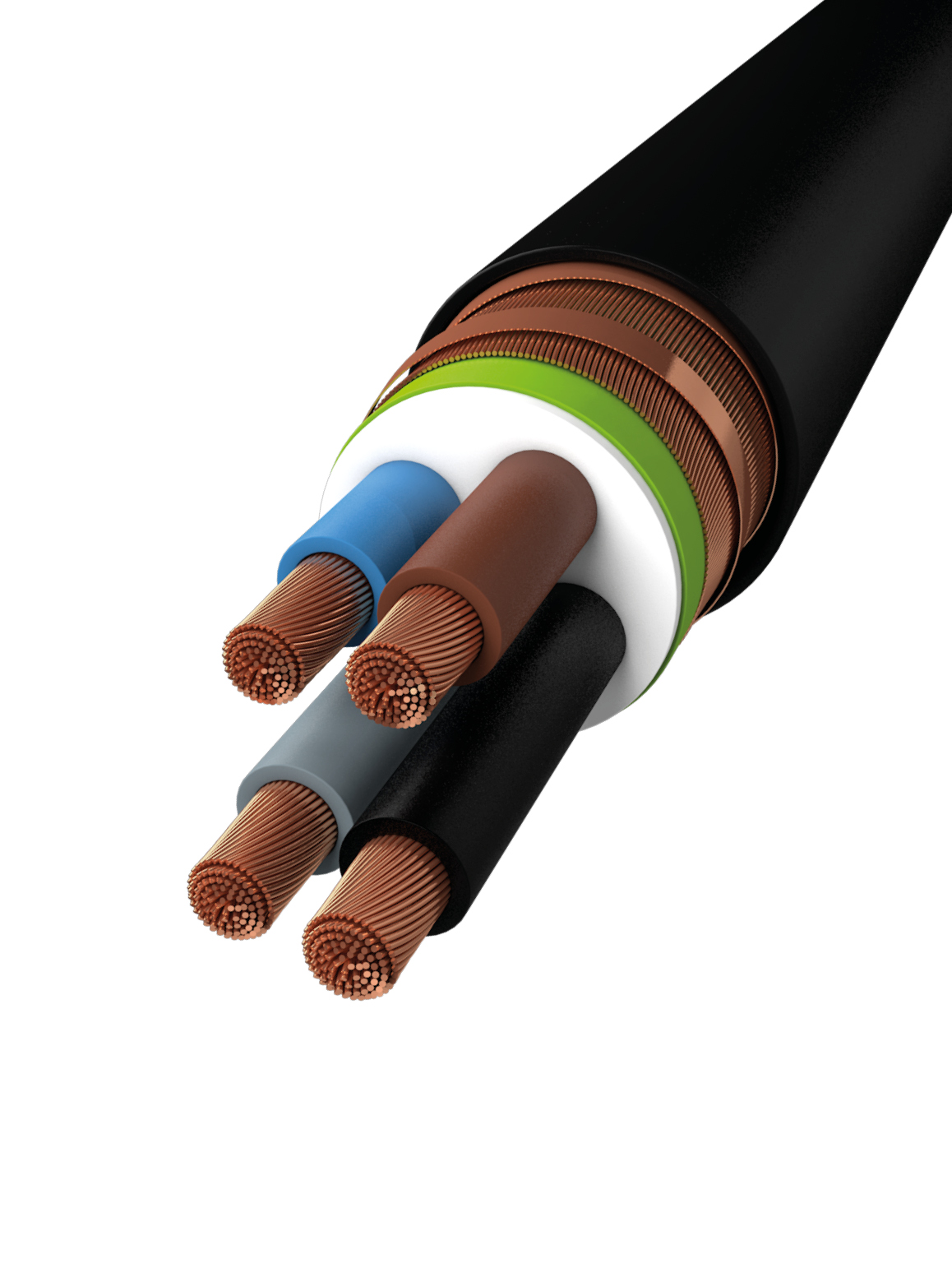

Construction
Conductor
Round multithreaded conductors of electrolytic annealed Cu, class 5
Insulation
XLPE
Conductor color
According to HD 308
Inner sheath
TPE
Screen
Concentric conductor of spiral twisted Cu wires and Cu tape around the inner sheat
Outer sheath
Halogen free TPE, black, meter marked
Technical data
Working temperature
-30° C to +90° C
Rated voltage
0.6/1 kV
Bend radius
5 x cable diameter
Technical comments
Short circuit temp.: max 250° C / 5 sec.
CPR classification:
Cca-s1a,d1,a1
Please request for DoP at dop@scankab.dkApprovals
EN 50575, IEC 60332-1, IEC 60332-3, IEC 60502-1, IEC 61034, IEC 60754, IEC 60228, CE, RoHS
Bending radius 5 x cable diameter
Can be buried
Can lay in tubes
Electromagnetically protected
Environmentally friendly
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Flexible
For industrial use
For permanent outdoor installation
For use in cable trays
For use in homes
For use in switchboards
For use in wind turbines
Halogen free
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Low voltage cable
Max. working temp. +90° C
Meter marked
Min. working temperature -30° C
Oil and grease resistant
Oil resistant
Outdoor use
Suitable for bricking
Suited for public places
Suited for wall attachment
UV-resistant
Water resistant
Withstands freezing
Withstands moisture
| SKU | EAN | CPR | Dimension (mm2) | Current Value (A) | Packaging | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 31904050 | 5704403045174 | Cca-s1a,d1,a1 | 4x50/25 | 192 | D./Cut | 36,4 | 2760 |
| 31904070 | 5704403045181 | Cca-s1a,d1,a1 | 4x70/35 | 246 | D./Cut | 40,9 | 3750 |
| 31904095 | 5704403045198 | Cca-s1a,d1,a1 | 4x95/50 | 298 | D./Cut | 46,1 | 4920 |
| 31904120 | 5704403045204 | Cca-s1a,d1,a1 | 4x120/70 | 346 | D./Cut | 51,3 | 6235 |
| 31904150 | 5704403045211 | Cca-s1a,d1,a1 | 4x150/70 | 399 | D./Cut | 59,2 | 7650 |
| 31904185 | 5704403045228 | Cca-s1a,d1,a1 | 4x185/95 | 456 | D./Cut | 65,2 | 9520 |
| 31904240 | 5704403045235 | Cca-s1a,d1,a1 | 4x240/120 | 538 | D./Cut | 70,4 | 12060 |
| * The values can have small deviations | |||||||
