SCANLET PLUS ® Armoured - 300/500 V
Application
SCANLET PLUS® Armoured is used for fixed installation or as a supply cable, where there is a need for an environmentally friendly halogen free cable that is reinforced. It can be used in dry and wet environments, indoors and outdoors, built into walls, embedded and buried in soil.

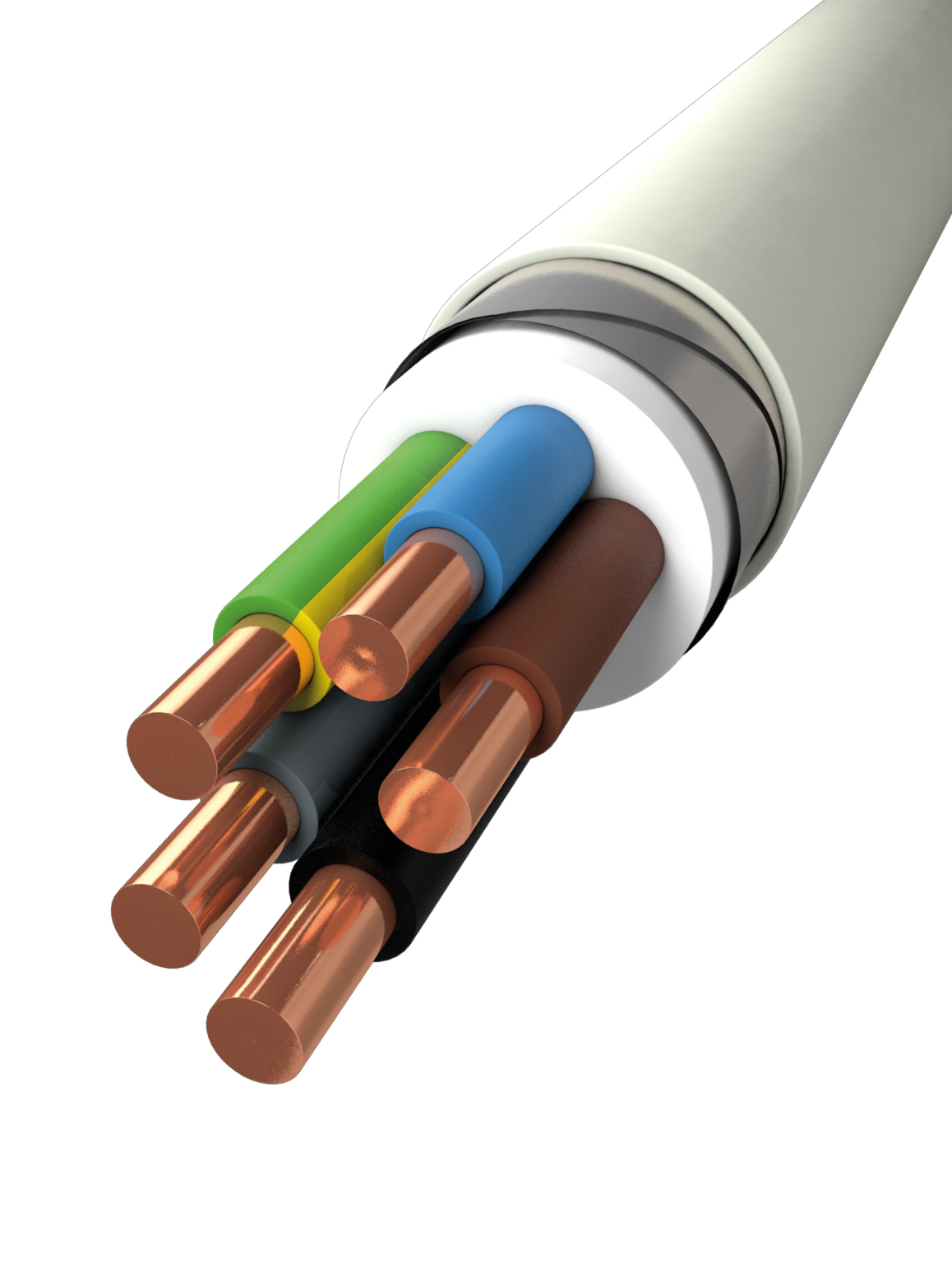

Construction
Conductor
Annealed Cu, class 1
Insulation
XLPE
Conductor color
3 cores: blue, brown, yellow/green
5 cores: blue, brown, black, grey, yellow/green
Screen
Galvanized steel band, 100% coverage
Outer sheath
Halogen free compound, meter marked, grey
Technical data
Working temperature
-40° C to +90° C
Rated voltage
300/500 V
Test voltage
2000 V
Bend radius
10 x cable diameter
Approvals
IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034, CE, RoHS
Bending radius 10 x cable diameter
Can be buried
Flame retardant acc. to IEC 60332-1
Halogen free
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Low voltage cable
Max. working temp. +90° C
Meter marked
Min. working temperature -40° C
Rodent protected
UV-resistant
| SKU | EAN | Dimension (mm) | Current Value (A) | Packaging | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| 121015003 | 5704403004263 | 3G1,5 | 17,5 | R-100 | 10,45 | 171 | |
| 121015013 | 5704403004324 | 3G1,5 | 17,5 | D./Cut | 10,45 | 171 | |
| 121015005 | 5704403004287 | 5G1,5 | 17,5 | R-100 | 11,75 | 212 | |
| 121015015 | 5704403004317 | 5G1,5 | 17,5 | D./Cut | 11,75 | 212 | |
| 121025003 | 5704403004348 | 3G2,5 | 24,0 | D./Cut | 11,75 | 185 | |
| 121025025 | 5704403004379 | 5G2,5 | 24,0 | R-50 | 12,80 | 288 | |
| 121025005 | 5704403004355 | 5G2,5 | 24,0 | R-100 | 12,80 | 288 | |
| 121025015 | 5704403004362 | 5G2,5 | 24,0 | D./Cut | 12,80 | 288 | |
| * The values can have small deviations | |||||||
