SCANFLEX ® CY 7050 UL/CSA Tray - 1 kV

Application

Is used where a flexible, UL and CSA approved, oil-resistant, screened cable connection is needed, for instance control equipment. Ideal for use in dry, damp and wet interiors.

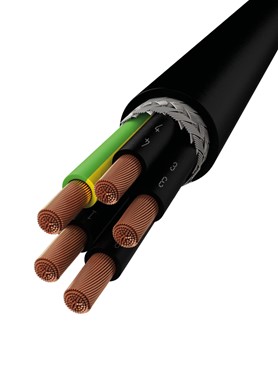

Construction

Conductor

Flexible bare copper acc. to IEC 60228,
cl. 5

Insulation

PVC

Conductor color

Black with white numbering,
yellow/green protective conductor

Screen

Aluminium polyester tape
Tinned copper wire braiding (85% coverage)

Outer sheath

PVC

Technical data

Working temperature
Fixed -40 °C to +90 °C
(UL AWM +105°C)
Flexible:  -5 °C to +90 °C
(UL AWM +105°C)
Rated voltage

600 V (TC and MTW)
1000 V (AWM)
1000 V (IEC)

Test voltage

6000 V

Bend radius
Fixed: 4 x cable diameter
Flexibel::  13 x cable diameter

Approvals

NFPA 79 2007, NEC 336.10(7), UL 1277, UL 1063, DIN-VDE 0295 K5, UL 83, UL 1277, UL 1063, UL 1685, UL OIL RES I, UL Wet Approval 75 °C, UL 2277, UL AWM 10012, 21179, CSA AWM I/II A/B, CSA 239-09, EN 50396, UL 1581, UL 1277
Bending radius 4 x cable diameter
Can be buried
Flexible
For industrial mobile use
For industrial use
Max. working temp. +90° C
Oil resistant
Outdoor use
Suitable for cable chains
Torsion resistant
UV-resistant
Water resistant
Withstands moisture
SKU EAN Dimension (mm2) Current Value (A) Packaging Diameter (mm)* Weight (kg/km)*
9055001002 5704403181001 2x1 - D./Cut 8,5 99,8
9055001003 5704403181018 3G1 - D./Cut 8,9 120,4
9055001007 5704403181049 7G1 - D./Cut 11,4 210,6
9055001012 5704403181056 12G1 - D./Cut 15,5 349,2
9055001018 5704403181063 18G1 - D./Cut 17,9 484,2
9055001025 5704403181070 25G1 - D./Cut 20,3 607,0
9055001502 5704403181087 2x1,5 - D./Cut 9,2 122,6
9055001503 5704403181094 3G1,5 - D./Cut 9,7 144,9
9055001504 5704403181100 4G1,5 - D./Cut 10,5 182,4
9055001505 5704403181117 5G1,5 - D./Cut 11,4 216,3
9055001507 5704403181124 7G1,5 - D./Cut 12,4 267,5
9055001512 5704403181131 12G1,5 - D./Cut 16,9 447,8
9055001518 5704403181148 18G1,5 - D./Cut 19,6 627,1
9055001525 5704403181155 25G1,5 - D./Cut 23,4 768,1
9055002502 5704403181162 2x2,5 - D./Cut 10,0 156,1
9055002503 5704403181179 3G2,5 - D./Cut 10,5 188,8
9055002504 5704403181186 4G2,5 - D./Cut 11,3 230,4
9055002505 5704403181193 5G2,5 - D./Cut 12,5 286,2
9055002507 5704403181209 7G2,5 - D./Cut 14,6 386,2
9055002512 5704403181216 12G2,5 - D./Cut 18,5 606,2
9055002518 5704403181223 18G2,5 - D./Cut 22,6 848,3
9055004003 5704403181230 3G4 - D./Cut 11,9 256,6
9055004004 5704403181247 4G4 - D./Cut 13,0 330,7
9055004005 5704403181254 5G4 - D./Cut 15,2 434,6
9055004007 5704403181261 7G4 - D./Cut 16,5 546,1
9055006003 5704403181278 3G6 - D./Cut 13,9 355,0
9055006004 5704403181285 4G6 - D./Cut 15,3 475,4
9055006005 5704403181292 5G6 - D./Cut 16,7 569,4
9055010004 5704403181308 4G10 - D./Cut 19,4 767,0
9055010005 5704403181315 5G10 - D./Cut 22,4 957,7
9055016004 5704403181322 4G16 - D./Cut 24,6 1202,4
9055016005 5704403181339 5G16 - D./Cut 27,1 1446,2
9055025004 5704403181346 4G25 - D./Cut 28,1 1695,2
9055035004 5704403181353 4G35 - D./Cut 31,0 2204,1
9055035005 5704403181360 5G35 - D./Cut 34,3 2475,8
9055050004 5704403181377 4G50 - D./Cut 37,7 3206,9
9055070004 5704403181384 4G70 - D./Cut 44,2 4399,7
9055095004 5704403181391 4G95 - D./Cut 47,7 5568,7
9055120004 5704403181407 4G120 - D./Cut 50,3 6655,3
9055150004 5704403181414 4G150 - D./Cut 55,9 8253,1
* The values can have small deviations
