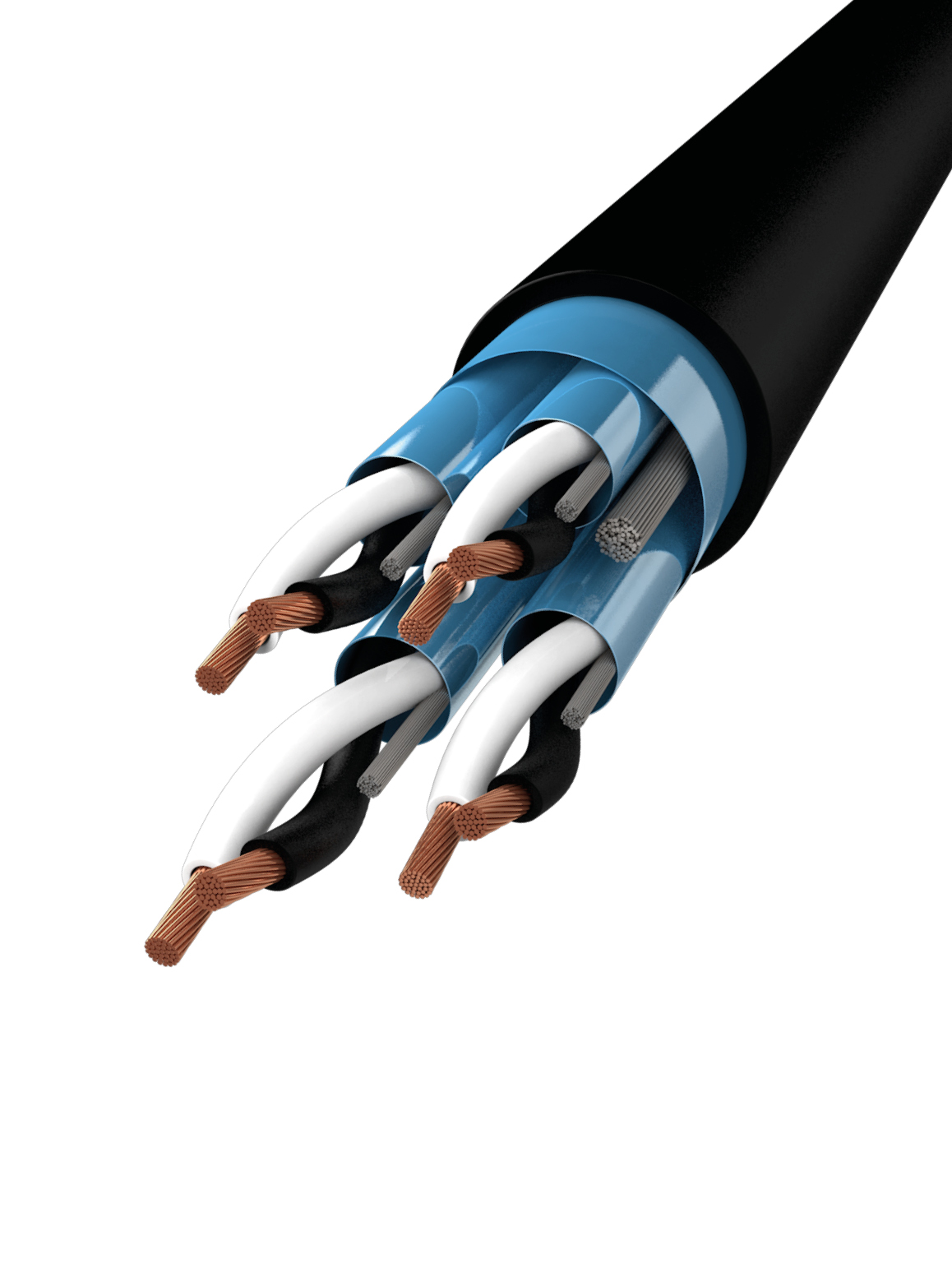

RE -2Y(st)Y-PiMF - shielded pairs - 300/500 V


RE-2Y(st)Y-PiMF is used for process control and data processes, analog or digital transmission; instrumentation cables are used for a wide range of areas. Factories, refineries, petrochemical institutions, energy houses, natural gas pump stations, ect. are the general use of the cables.



Stranded Cu



Conductor color

Conductor A: black with numbering
Conductor B: white with numbering


Shielded pairs: AL/PES tape (0.60mm2 tinned Cu with drain wire)
Overall shielding: AL/PES tape (7x0.3mm2 tinned Cu with drain wire)

Outer sheath

PVC, black

Technical data

Working temperature

-30º C to +70º C

Rated voltage

300/500 V

Test voltage

Conductor/screen: 1000 V, conductor/conductor: 2000 V

Bend radius

7,5 x cable diameter

Technical comments

Insulation resistance: 5 GOhm x km
Operating capacity: 115 nF/km


IEC 60332-3, CE, RoHS
Bending radius 7,5 x cable diameter
Can be buried
Electromagnetically protected
Fire retardant acc. to IEC 60332-3
Max. working temp. +70° C
Outdoor use
SKU EAN Dimension (mm2) Current Value (A) Packaging Color Diameter (mm)* Weight (kg/km)*
10425020250 5704403047017 2x2x0,5 - D./Cut Black 8,2 88
10425040250 5704403114610 4x2x0,5 - D./Cut Black 10,5 138
10425070250 5704403114627 7x2x0,5 - D./Cut Black - -
10426140250 5704403045440 14x2x0,5 - D./Cut Black - -
10425240250 5704403114603 24x2x0,5 - D./Cut Black 21,8 619
* The values can have small deviations
