TOXFREE ® Z1C4Z1-K (AS), EMC - 0,6/1 kV
Application
TOXFREE® Z1C4Z1-K (AS), EMC is suitable for all use where there is a demand for screened cables regarding EMC. For use in industry and building installations, public buildings, power plants or anywhere where there is a demand for 0.6/1 kV screened, halogen free cables. The cable is suited for burial and may be placed outdoors.

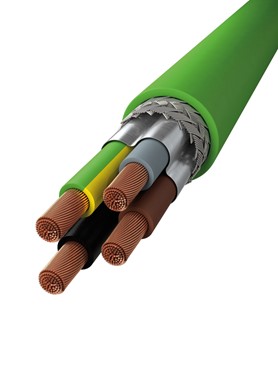

Construction
Conductor
Flexible electrolytic Cu, class 5
Insulation
Special polyolefin
Conductor color
Acc. to HD 308
Filling sheath
Flexible unleaded halogen free material
Screen
100% covering screen consisting of:
aluminum / polyester separator and tinned braided Cu screen
Outer sheath
Extra flexible halogen free compound, green, meter marked
Technical data
Working temperature
-40º C to +70º C
Rated voltage
0.6/1 kV
Bend radius
5 x cable diameter
CPR classification:
Cca-s1a,d1,a1
Please request for DoP at dop@scankab.dkApprovals
EN 50575, IEC 60754, IEC 60332-1, IEC 60332-3, IEC 61034, IEC 60228, IEC 60502-1, IEC 60364-5-52, CE, RoHS
Bending radius 5 x cable diameter
Can be buried
Can lay in tubes
Electromagnetically protected
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Flexible
For industrial use
For permanent outdoor installation
Halogen free
Impact resistance: medium
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Max. working temp. +70° C
Meter marked
Min. working temperature -40° C
Outdoor use
Resistance towards oil and chemicals
Suited for public places
UV-resistant
Water resistant
| SKU | EAN | CPR | Dimension (mm2) | Current Value (A) | Packaging | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 320002001 | 5704403040308 | Cca-s1a,d1,a1 | 2x1 | 19 | D./Cut | 8,2 | 85 |
| 3200020015 | 5704403092338 | Cca-s1a,d1,a1 | 2x1,5 | 26 | D./Cut | 8,6 | 105 |
| 320003001 | 5704403092345 | Cca-s1a,d1,a1 | 3G1 | 19 | D./Cut | 9,0 | 110 |
| 3200030015 | 5704403009985 | Cca-s1a,d1,a1 | 3G1,5 | 26 | D./Cut | 9,4 | 130 |
| 3200030025 | 5704403009992 | Cca-s1a,d1,a1 | 3G2,5 | 36 | D./Cut | 10,3 | 165 |
| 320004001 | 5704403092352 | Cca-s1a,d1,a1 | 4G1 | 19 | D./Cut | 10,0 | 130 |
| 3200040015 | 5704403010004 | Cca-s1a,d1,a1 | 4G1,5 | 23 | D./Cut | 10,2 | 155 |
| 3200040025 | 5704403010011 | Cca-s1a,d1,a1 | 4G2,5 | 32 | D./Cut | 11,0 | 200 |
| 3200040060 | 5704403188390 | Cca-s1a,d1,a1 | 4G6 | 54 | D./Cut | 13,4 | 350 |
| 3200050015 | 5704403166527 | Cca-s1a,d1,a1 | 5G1,5 | 18,5 | D./Cut | 11,0 | 180 |
| 3200050025 | 5704403187195 | Cca-s1a,d1,a1 | 5G2,5 | 32 | D./Cut | 12,0 | 240 |
| 3200050040 | 5704403194698 | Cca-s1a,d1,a1 | 5G4 | 42 | D./Cut | 13,7 | 325 |
| 320007001 | 5704403188307 | Cca-s1a,d1,a1 | 7G1 | 19 | D./Cut | 10,9 | 192 |
| 3200070015 | 5704403010073 | Cca-s1a,d1,a1 | 7G1,5 | 26 | D./Cut | 11,9 | 230 |
| 3200070025 | 5704403186914 | Cca-s1a,d1,a1 | 7G2,5 | 32 | D./Cut | 13,5 | 285 |
| 3200010025 | 5704403056231 | Cca-s1a,d1,a1 | 10G2,5 | 32 | D./Cut | 14,5 | 301 |
| 3200012010 | 5704403188314 | Cca-s1a,d1,a1 | 12G1 | 19 | D./Cut | 13,2 | 295 |
| 3200012015 | 5704403188321 | Cca-s1a,d1,a1 | 12G1,5 | 26 | D./Cut | 14,6 | 350 |
| 3200012025 | 5704403188369 | Cca-s1a,d1,a1 | 12G2,5 | 32 | D./Cut | 17,5 | 455 |
| 3200014015 | 5704403188338 | Cca-s1a,d1,a1 | 14G1,5 | 26 | D./Cut | 16,4 | 370 |
| 3200014025 | 5704403188376 | Cca-s1a,d1,a1 | 14G2,5 | 32 | D./Cut | 18,4 | 510 |
| 3200019015 | 5704403188345 | Cca-s1a,d1,a1 | 19G1,5 | 26 | D./Cut | 18,1 | 465 |
| 3200019025 | 5704403056224 | Cca-s1a,d1,a1 | 19G2,5 | 32 | D./Cut | 20,6 | 665 |
| 3200024015 | 5704403188352 | Cca-s1a,d1,a1 | 24G1,5 | 26 | D./Cut | 19,8 | 575 |
| 3200024025 | 5704403188383 | Cca-s1a,d1,a1 | 24G2,5 | 32 | D./Cut | 24,3 | 850 |
| * The values can have small deviations | |||||||
