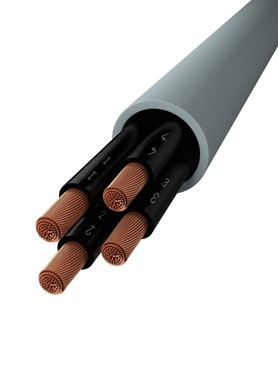

SCANFLEX ® OY 1002 - 300/500 V
Application
SCANFLEX® OY 1002 is used where a flexible cable connection is needed, for instance control equipment in machinery and production.
Construction
Conductor
Bare Cu-thread, class 5
Insulation
PVC
Conductor color
Black with white numbering
Outer sheath
PVC, grey RAL 7001
Technical data
Working temperature
| Flexible: | -5° C to +70° C |
| Fixed: | -40° C to +80° C |
Rated voltage
300/500 V
Test voltage
4000 V
Bend radius
15 x cable diameter
CPR classification:
Eca
Please request for DoP at dop@scankab.dkApprovals
EN 50575, IEC 60332-1, CE, RoHS
Bending radius 15 x cable diameter
Can lay in tubes
Flame retardant acc. to IEC 60332-1
Flexible
For industrial mobile use
For industrial use
Low voltage cable
Max. working temp. +80° C
Meter marked
Min. working temperature -40° C
Oil resistant
Water resistant
Withstands moisture
| SKU | EAN | CPR | Dimension (mm2) | Current Value (A) | Packaging | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 101005002 | 5704403000456 | Eca | 2x0,5 | 7 | D./Cut | 4,9 | 38 |
| 105005003 | 5704403002047 | Eca | 3x0,5 | 7 | D./Cut | 5,2 | 47 |
| 105005004 | 5704403002054 | Eca | 4x0,5 | 7 | D./Cut | 5,7 | 58 |
| 105005005 | 5704403002061 | Eca | 5x0,5 | 7 | D./Cut | 6,0 | 75 |
| 105005007 | 5704403002078 | Eca | 7x0,5 | 7 | D./Cut | 7,0 | 93 |
| 101007502 | 5704403000586 | Eca | 2x0,75 | 9 | D./Cut | 5,5 | 43 |
| 105007503 | 5704403002085 | Eca | 3x0,75 | 9 | D./Cut | 5,7 | 61 |
| 105007504 | 5704403002092 | Eca | 4x0,75 | 9 | D./Cut | 6,2 | 75 |
| 105007505 | 5704403002108 | Eca | 5x0,75 | 9 | D./Cut | 6,9 | 100 |
| 105007507 | 5704403002115 | Eca | 7x0,75 | 9 | D./Cut | 7,6 | 125 |
| 105007512 | 5704403002139 | Eca | 12x0,75 | 9 | D./Cut | 10,1 | 210 |
| 101010002 | 5704403000821 | Eca | 2x1 | 11 | D./Cut | 5,8 | 57 |
| 105010003 | 5704403002146 | Eca | 3x1 | 11 | D./Cut | 6,3 | 80 |
| 105010004 | 5704403002153 | Eca | 4x1 | 11 | D./Cut | 6,7 | 106 |
| 105010005 | 5704403002160 | Eca | 5x1 | 11 | D./Cut | 7,3 | 123 |
| 105010007 | 5704403002177 | Eca | 7x1 | 11 | D./Cut | 8,3 | 149 |
| 105010012 | 5704403028184 | Eca | 12x1 | 11 | D./Cut | 10,7 | 260 |
| 101015002 | 5704403001026 | Eca | 2x1,5 | 15 | D./Cut | 6,6 | 100 |
| 105015003 | 5704403002191 | Eca | 3x1,5 | 15 | D./Cut | 6,8 | 110 |
| 105015004 | 5704403028177 | Eca | 4x1,5 | 15 | D./Cut | 7,4 | 125 |
| 105015005 | 5704403002207 | Eca | 5x1,5 | 15 | D./Cut | 8,3 | 145 |
| 105015007 | 5704403002214 | Eca | 7x1,5 | 15 | D./Cut | 9,1 | 195 |
| 105015012 | 5704403002221 | Eca | 12x1,5 | 15 | D./Cut | 12,3 | 310 |
| 101025002 | 5704403001248 | Eca | 2x2,5 | 20 | D./Cut | 7,7 | 121 |
| 105025003 | 5704403002238 | Eca | 3x2,5 | 20 | D./Cut | 8,3 | 179 |
| 105025004 | 5704403025428 | Eca | 4x2,5 | 20 | D./Cut | 9,1 | 180 |
| * The values can have small deviations | |||||||
