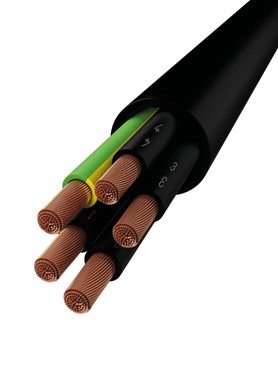

SCANFLEX ® ES05 VV-F - 300/500 V

Application

SCANFLEX® ES05 VV-F is used where a flexible cable connection is needed, for instance for control equipment in machinery and production where there is a demand on UV-resistant control cables.

Construction

Conductor

Tinned Cu-thread, class 5

Insulation

PVC

Conductor color

Black with white numbering

Outer sheath

PVC, black, UV-resistant

Technical data

Working temperature

-5o C to +70o C

Rated voltage

300/500 V

Test voltage

2000 V

Bend radius

5 x cable diameter

CPR classification:

Eca

Please request for DoP at dop@scankab.dk

Approvals

EN 50575, IEC 60332-1, CE, RoHS
Bending radius 5 x cable diameter
Flame retardant acc. to IEC 60332-1
Flexible
For industrial use
Max. working temp. +70° C
Meter marked
Min. working temperature -5° C
Outdoor use
UV-resistant
SKU EAN CPR Dimension (mm2) Current Value (A) Packaging Diameter (mm)* Weight (kg/km)*
0107001 5704403000081 Eca 7G1 10 D./Cut 7,9 115
0108001 5704403056293 Eca 8G1 10 D./Cut 8,6 135
0110001 5704403000128 Eca 10G1 10 D./Cut 9,7 165
0112001 5704403000142 Eca 12G1 10 D./Cut 10,3 190
0116001 5704403000173 Eca 16G1 10 D./Cut 11,4 245
0119001 5704403000180 Eca 19G1 10 D./Cut 12,1 280
0124001 5704403000210 Eca 24G1 10 D./Cut 13,7 345
0130001 5704403000258 Eca 30G1 10 D./Cut 14,7 410
0137001 5704403025381 Eca 37G1 10 D./Cut 17,2 535
* The values can have small deviations
