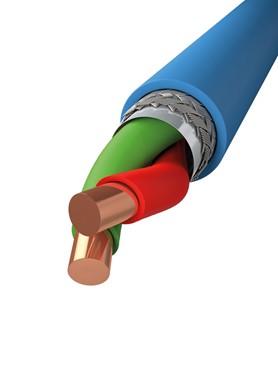

PROFIBUS Y 3001 - 350 V
Application
PROFIBUS Y 3001 is used where a cable connection is needed, for instance signal transmission in engineering.
Construction
Conductor
Bare Cu thread
Insulation
Zell PE
Conductor color
Red and green
Screen
Aluminium foil, braided Cu screen
Outer sheath
PVC, blue and Black (UV resistant)
Technical data
Working temperature
| Flexible: | -5º C to +50º C |
| Fixes: | -30º C to +70º C |
Rated voltage
350 V
Test voltage
| Conductor/conductor: | 1000 V |
| Conductor/screen: | 800 V |
Bend radius
| Flexible: | 15 x cable diameter |
| Fixed: | 8 x cable diameter |
Technical comments
Max. conductor resisistant: 57.1 Ω/km
Insulation resistant: >16 G Ω/km
Impedance: 150 Ω +/- 10%
Approvals
IEC 60332-1, VDE 0472 stk. 803, CE, RoHS
Bending radius
Can lay in tubes
Electromagnetically protected
Flame retardant acc. to IEC 60332-1
Flexible
For industrial mobile use
For industrial use
For use in switchboards
Max. working temp. +70° C
Meter marked
Min. working temperature -30° C
Outdoor use
Resistance towards oil and chemicals
UV-resistant
Withstands freezing
Withstands moisture
| SKU | EAN | Dimension (mm) | Current Value (A) | Packaging | Color | Diameter (mm)* | Weight (kg/km)* |
|---|---|---|---|---|---|---|---|
| 383000002 | 5704403012558 | 1x2x1,0 | - | D./Cut | Black | 7,5 | 75 |
| 383000003 | 5704403012565 | 1x2x1,0 | - | D./Cut | Blue | 7,5 | 75 |
| * The values can have small deviations | |||||||
