PROFIBUS L2 P 3010 - 250 V
Application
PROFIBUS L2 P 3010 is used where a high flexible cable connection is needed, for instance signal transmission in engineering.

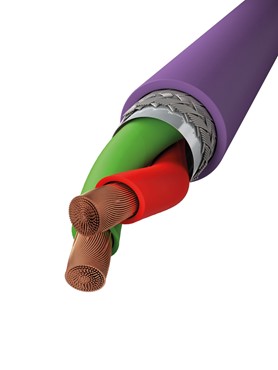

Construction
Conductor
Bare Cu thread, class 6
Insulation
PE
Conductor color
Red and green
Screen
Aluminium foil, tin-coated braided Cu screen
Outer sheath
PUR, violet
Technical data
Working temperature
-40º C to +60º C
Rated voltage
250 V
Test voltage
3600 V for 3 sec.
Bend radius
Min. 65 mm
Approvals
IEC 60332-1, IEC 60754, IEC 61034, CE, RoHS
Abrasion resistant
Bending radius
Crane cable
Electromagnetically protected
Environmentally friendly
Flame retardant acc. to IEC 60332-1
Flexible
For industrial mobile use
For industrial use
For petrol stations, oil deposits and refineries
For robot technology
For use in cable trays
Halogen free
Impact resistance: medium
Lift and elevator cable
Low emission of corrosive gases acc. to IEC 60754
Low smoke emission during fire acc. to 61034
Max. working temp. +60° C
Min. working temperature -40° C
Oil and grease resistant
Oil resistant
Resistance towards oil and chemicals
Suitable for cable chains
Suited for public places
Water resistant
Withstands freezing
Withstands moisture
| SKU | EAN | Dimension (mm) | Current Value (A) | Packaging | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| 386006402 | 5704403012602 | 1x2x0,64 | - | D./Cut | 8,5 | 65 | |
| * The values can have small deviations | |||||||
