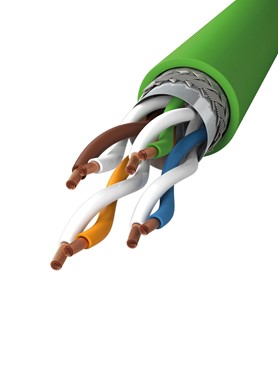

ETHERNET Bus P 3210 - 300 V
Application
ETHERNET cables for flexible installation.
The ETHERNET cables refer to the American Standard EIA/TIA 568B (category 5E) and the European Standard EN 50288 series (Category 5), suitable to meet the FAST ETHERNET requirements which is a bit rate up to 100 Mbit/s. More detailed characteristics are available upon request.
Construction
Conductor
Bare copper according to CEI EN 60228 (CEI 20-29) class 6
Insulation
Polyolefin
Conductor color
White/orange-orange
White/green-green
White/blue-blue
White/brown-brown
Screen
Tinned copper wire braid.
Coverage above 85%.
Outer sheath
PUR according to UL 1581, C22.2 no 210 and EN50363-10-2
Colour: green RAL 6016
Technical data
Working temperature
Fixed installation: -40oC to +80oC
Flexible installation: -30oC to +80oC
Rated voltage
300 V
Test voltage
1000 V
Bend radius
Fixed installation: 5 x cable diameter
Flexible installation: 10 x cable diameter
Approvals
CEI EN 60228, UL 1581, UL 758, FT-1 CSA test C.22.2 nr. 210, EN 50363-10-2, IEC CEI EN 60332-1, ≤0,5% IEC 60754, CEI EN 50267-2, UL 758 table 15.1, UL/CSA registered: 80 °C 1000V style 21576, CE
Bending radius 5 x cable diameter
Electromagnetically protected
Flame retardant acc. to IEC 60332-1
Low emission of corrosive gases acc. to IEC 60754
Max. working temp. +80° C
Min. working temperature -40° C
Oil resistant
Suitable for cable chains
Water resistant
| SKU | EAN | Dimension (mm2) | Current Value (A) | Packaging | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| 82802224 | - | (2x2xAWG24) | - | D./Cut | 6 | 54 | |
| 82804224 | - | (4x2xAWG24) | - | D./Cut | 6,7 | 70 | |
| * The values can have small deviations | |||||||
