Cable shoes TTA-SR - cl. 1 & 2
Application
TTA-SR cable shoes are made from high mechanical and corrosion free aluminium with a tinned alloy.
The connection takes place through the bolt with ATC-system/torque control. The cable shoe can also be fitted with fastening bolts incl. aluminium alloy to avoid the differential expansion.
The cable shoes can be used for both AL and CU conductors, class 2.
Construction

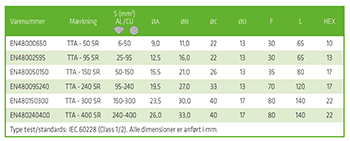

Technical data
Approvals
| SKU | EAN | Dimension (mm2) | Current Value (A) | Packaging | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| EN48000650 | 5704403069361 | 6-50 | - | - | - | - | |
| EN48002595 | 5704403069378 | 25-95 | - | - | - | - | |
| EN480050150 | 5704403069385 | 50-150 | - | - | - | - | |
| EN480095240 | 57004403069392 | 95-240 | - | - | - | - | |
| EN480150300 | 57004403069408 | 150-300 | - | - | - | - | |
| EN480240400 | 5704403069415 | 240-400 | - | - | - | - | |
| * The values can have small deviations | |||||||
