PEX-S-AL - 12 KV

Application

PEX-S-AL is used as an underground cable in distribution networks with voltage up to 12 kV

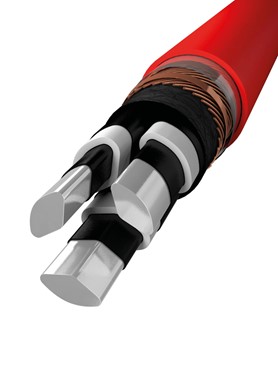

Construction

Conductor

Solid sector shaped aluminium, extruded semiconducting

Insulation

XLPE, superclean vulcanized ekstruded, strippable

Screen

Creepet carbon paper
Helically Cu thread with Cu tape applied with clear foil

Outer sheath

PE, MDPE, UV-stabilized, red

Technical data

Working temperature

+90° C

Rated voltage

7.2/12 kV

Test voltage

30000 volt AC from conductor to screen for 5 min.

Bend radius

10 x cable diameter

Technical comments

Short circuit temp.: max 250° C / 5 sec.
You can find further data for the cable here

Approvals

IEC 60502, HD 620 part 6D, CE, RoHS
Bending radius 10 x cable diameter
Halogen free
Max. working temp. +90° C
Medium voltage cable
Meter marked
UV-stabilized
SKU EAN Dimension (mm2) Current Value (A) Packaging Diameter (mm)* Weight (kg/km)*
960330003 - 3x300/35 450 D./Cut 65 5195
961050003 5704403035588 3x50/16 160 D./Cut 44 1517
961095003 5704403035595 3x95/25 230 D./Cut 50 2185
961150003 5704403035632 3x150/25 305 D./Cut 55 2769
961240003 5704403035649 3x240/35 400 D./Cut 62 3860
* The values can have small deviations
