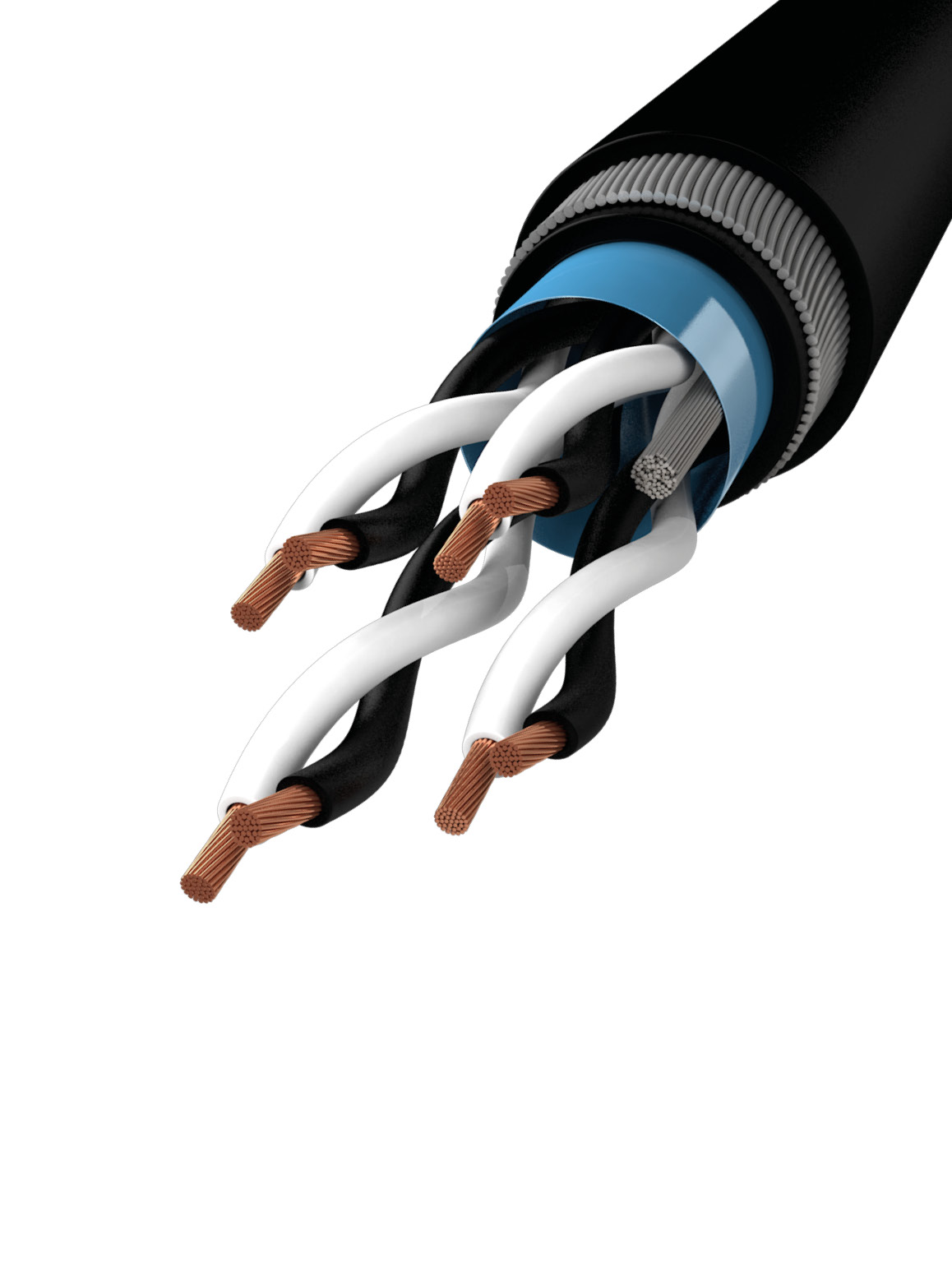

RE-2Y(st)YSWAY joint screen and armoured - 300/500 V
Application
RE-2Y(st)YSWAY is used for process control and data processes, analog or digital transmission; instrumentation cables are used for a wide range of areas. Factories, refineries, petrochemical institutions, energy houses, natural gas pump stations, ect. are the general use of the cables.
Construction
Conductor
Cu threads, class 2
Insulation
PVC
Conductor color
| Pair: | black and white |
| Triple: | black, white and red |
Inner sheath
PVC, black
Screen
Screen: Electrostatic plastic laminated aluminiumfoil (AL-PES)
Armament: Round galvanized steel wire
Outer sheath
PVC, black or blue RAL 5015
Drainwire
Tinned Cu (7x0.30 mm)
Technical data
Working temperature
-30° C to +70° C
Rated voltage
300/500 V
Test voltage
| Conductor/conductor: | 2000 V |
| Conductor/screen: | 1000 V |
Bend radius
10 x cable diameter
Approvals
IEC 60332-1, IEC 60332-3-22, CE, RoHS
Bending radius 10 x cable diameter
Can be buried
Can lay in tubes
Electromagnetically protected
Fire retardant acc. to IEC 60332-3-22 (CAT-A)
Flame retardant acc. to IEC 60332-1
Max. working temp. +70° C
Min. working temperature -30° C
Outdoor use
UV-resistant
Withstands freezing
Withstands moisture
| SKU | EAN | Dimension (mm2) | Current Value (A) | Packaging | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| 10402140 | 5704403032501 | 1x2x1,5 | - | D./Cut | 11,5 | 290 | |
| * The values can have small deviations | |||||||
