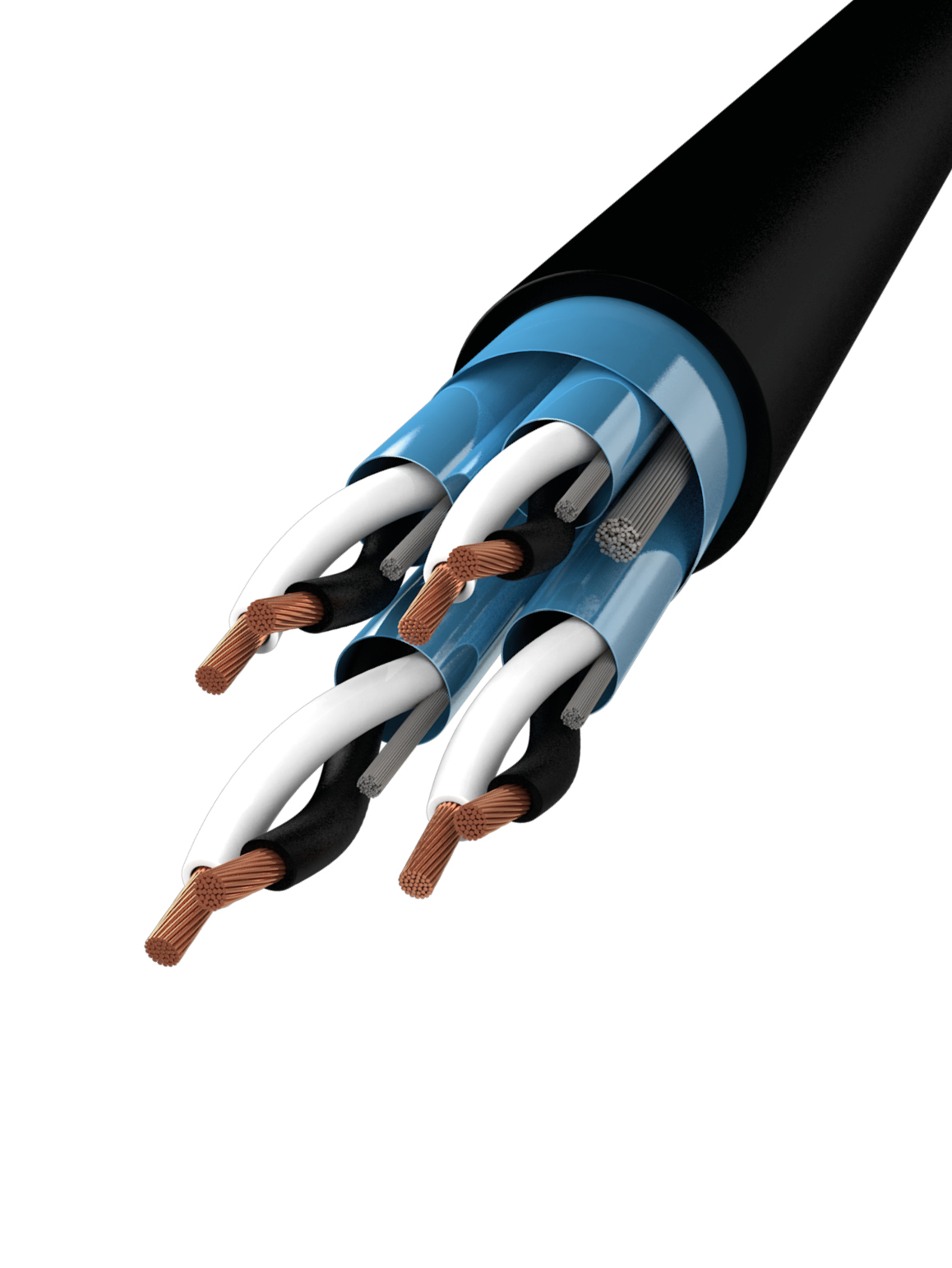

RE-2X(st)Y-PiMF shielded pairs - 300/500 V

Application

RE-2X(st)Y-PiMF is used for process control and data processes, analog or digital transmission; instrumentation cables are used for a wide range of areas. Factories, refineries, petrochemical institutions, energy houses, natural gas pump stations, ect. are the general use of the cables.

Construction

Conductor

Stranded Cu

Insulation

XLPE

Conductor color

Conductor A: black with numbering
Conductor B: white with numbering

Screen

Shielded pairs: AL/PES tape (0.60mm2 tinned Cu with drain wire)
Overall shielding: AL/PES tape (7x0.3mm2 tinned Cu with drain wire)

Outer sheath

PVC, black

Technical data

Working temperature

-30º C to +90º C

Rated voltage

300/500 V

Test voltage

Conductor/screen: 1000 V, conductor/conductor: 2000 V

Bend radius

7,5 x cable diameter

Technical comments

Insulation resistance: 5 GOhm x km
Operating capacity: 115 nF/km

Approvals

IEC 60332-3-22, CE, RoHS
Bending radius 7,5 x cable diameter
Can be buried
Electromagnetically protected
Fire retardant acc. to IEC 60332-3
Max. working temp. +90° C
Outdoor use
UV-resistant
SKU EAN Dimension (mm2) Current Value (A) Packaging Diameter (mm)* Weight (kg/km)*
10470720050P 5704403117536 7x2x0,5 - D./Cut - -
10450802075 5704403059614 8x2x0,75 - D./Cut 16,1 310
10451602075 5704403059621 16x2x0,75 - D./Cut 21,1 530
10452402075 5704403059638 24x2x0,75 - D./Cut 25,5 760
* The values can have small deviations
