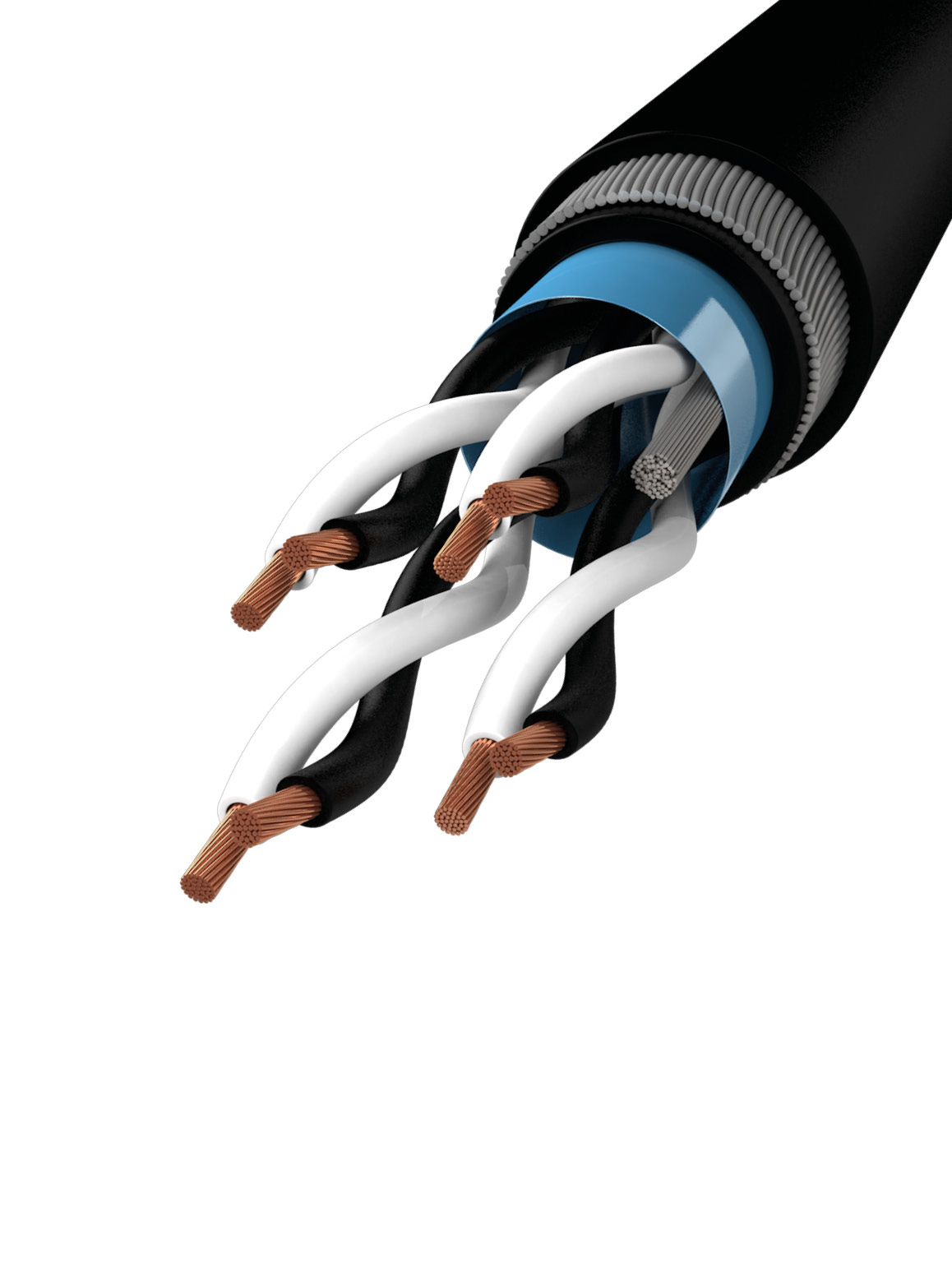

RE-2G(st)HSWAH...CI joint screen, armoured & fireproof - 300/500 V
Application
RE-2G(st)HSWAH is used for transmission of analog and digital signals in instrument and control systems, where circuit function in case of fire is weighted heavily. It is allowed to connect the cable directly to low impedance sources, such as the public mains electricity supply. The cable is halogen free and fire safe.
Construction
Conductor
Cu threads, class 2
Insulation
Silicone rubber
Conductor color
| Pair: | black and white |
| Triple: | black, white and red |
Inner sheath
LSZH, black
Screen
Screen: Electrostatic plastic laminated aluminumfoil (AL-PES)
Armament: Round galvanized steel wire
Outer sheath
LSZH, black or blue RAL 5015
Drainwire
Tinned Cu (7x0.30 mm)
Technical data
Working temperature
-30º C to +90º C
Rated voltage
300/500 V
Bend radius
10 x cable diameter
Approvals
IEC 60331-21, IEC 60332-1, IEC 60332-3-24, IEC 61034-2, IEC 60754-1, CE, RoHS
Bending radius 10 x cable diameter
Can be buried
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Halogen free
Max. working temp. +90° C
| SKU | EAN | Dimension (mm2) | Current Value (A) | Packaging | Diameter (mm)* | Weight (kg/km)* | |
|---|---|---|---|---|---|---|---|
| - | - | 2,5 | - | - | 7x0,67 | - | |
| * The values can have small deviations | |||||||
