RE-2X(st)Y, joint screen - 300/500 V

Application

RE-2X(st)Y is used in low-voltage, communications and data facilities for analog as well as digital signal transmission.

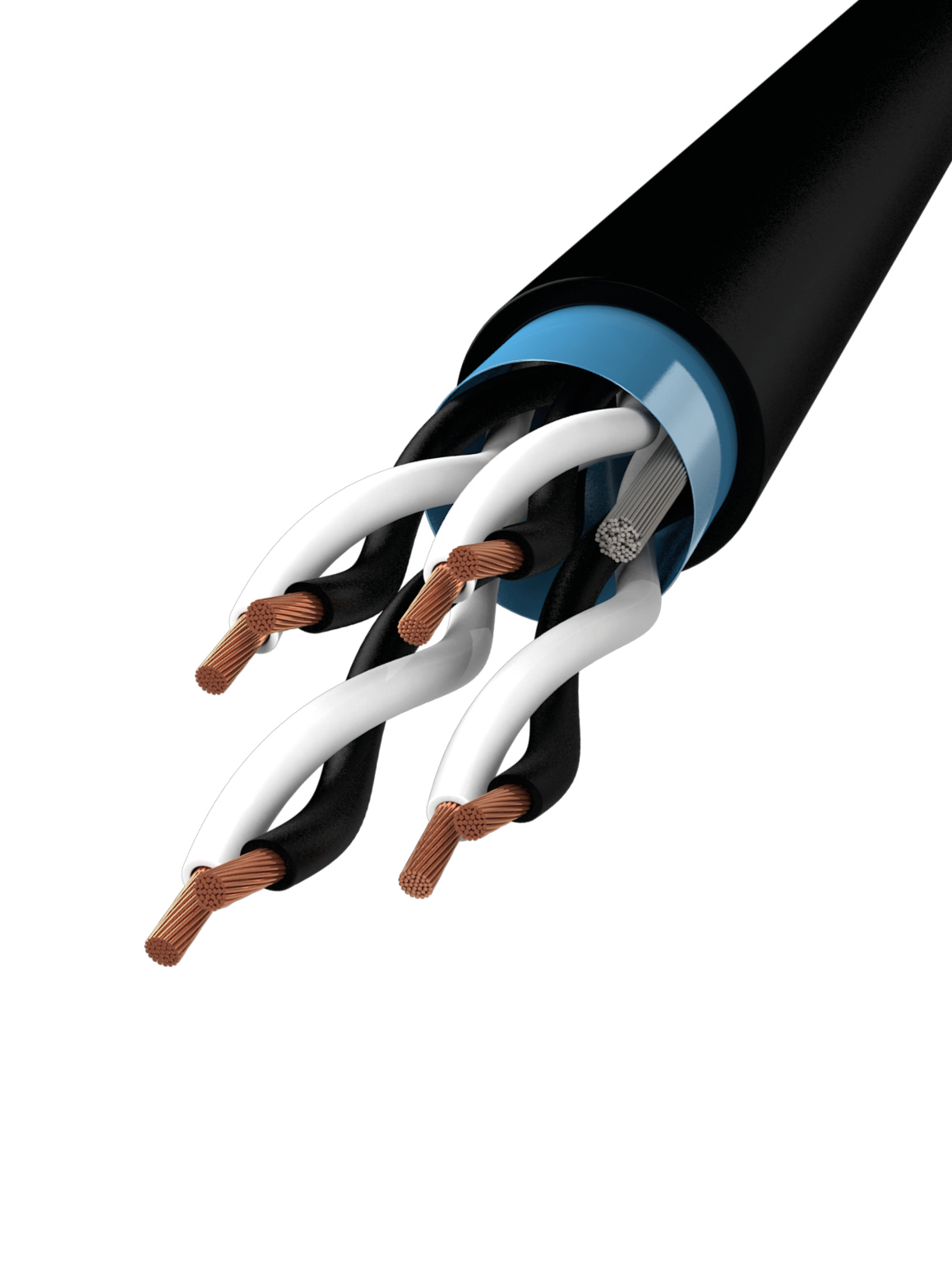

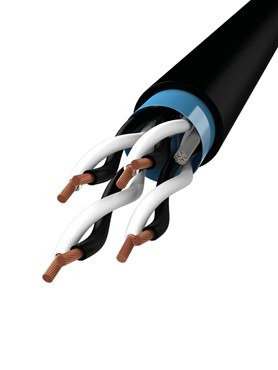

Construction

Conductor

Cu threads, class 2
1 orange communication core (0.5 mm2)

Insulation

XLPE

Conductor color
Pair: black and white
Triple: black, white and red
Screen

Electrostatic screen of plastic laminated aluminiumfoil (AL-PES)

Outer sheath

PVC, black or blue 5015
Cables with blue outer sheath are used for intrinsically safe installation

Drainwire

Tinned Cu (7x0.30 mm)

Technical data

Working temperature
Flexible: -5° C to +50° C
Fixed: -30° C to +90° C
Rated voltage

300/500 V

Test voltage
Conductor/conductor:  2000 V
Conductor/screen: 1000 V
Bend radius

7.5 x cable diameter

Approvals

IEC / EN 60332-1, IEC 60332-3, (BS 4066 part 1&3), EN 50266-2-2, CE, RoHS
Bending radius 7,5 x cable diameter
Fire retardant acc. to IEC 60332-3
Flame retardant acc. to IEC 60332-1
Max. working temp. +90° C
Outdoor use
Withstands moisture
SKU EAN Dimension (mm2) Current Value (A) Packaging Diameter (mm)* Weight (kg/km)*
10470220050 5704403094387 2x2x0,5 - D./Cut 7,3 75
10470720050 5704403117529 7x2x0,5 - D./Cut - -
10471420050 5704403117543 14x2x0,5 - D./Cut - -
* The values can have small deviations
